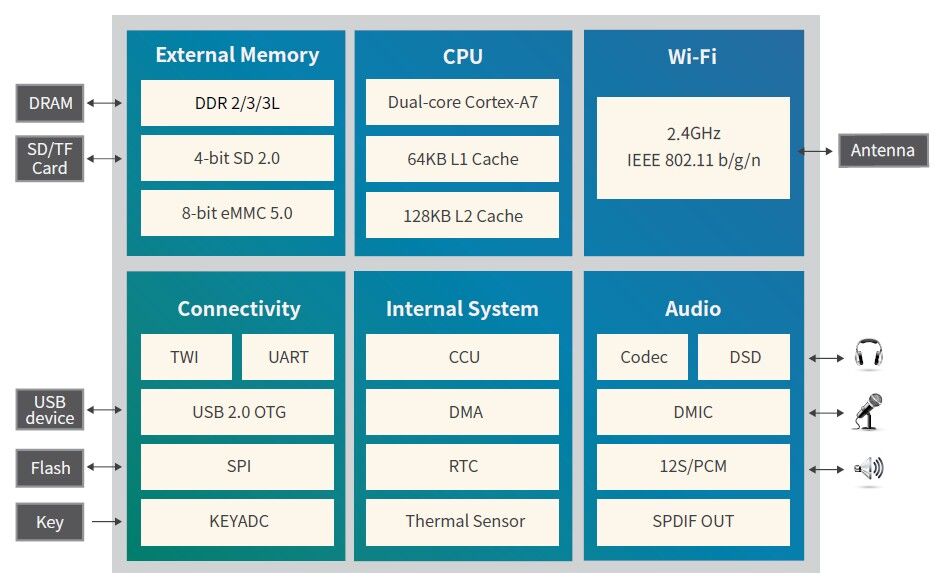

• XR923

  • Dual-core ARM Cortex™-A7 Processor

  • Supports DDR2 /DDR3 /DDR3L SDRAM

  • eMMC 5.0, SD 2.0 compliant

  • Supports RGB LCD up to 720p@60fps

  • Supports 24bit/192KHz audio playback

  • Supports two I2S/PCM interfaces up to 384KHz sample rate, and 16 channel TDM with 32bit sample resolution

  • Supports DSD interface with 2 channels, 64/128/256 -bit sample mode

  • Supports DMIC interface with 8 channels, maximum 48KHz sample rate

  • Supports SPDIF OUT and IN interface

  • Supports 802.11 b/g/n protocol

  • Supports USB 2.0 OTG, UART, SPI, TWI
